Model 5, DUAL SENSOR SYSTEM VIS & SWIR

Our “Models C and B” prism-based benefit the use of spectroscopic bands RGB and SWIR in one optical sight directed to two separate image sensors. The camera features the most state-of-the-art CMOS smart sensors, providing high sensitivity for demanding imaging. The pixel fusion technology provides accurate RGB and SWIR raw image data of each real world pixel of your image.

The 2-sensor camera is equipped with 1120 x 952 pixels in the visual range of the spectrum combined with a 640x 512 SWIR image sensor. The pixel fusion of both channels providing precise spatial resolution, enabling accurate edge detection and the ability to resolve the smallest details in the spectrum 380 – 1680 nm.

 “Models C5 and B5” benefit the use of four spectroscopic bands in one optical sight, featuring the most state-of-the-art CMOS smart sensors.

APPLICATION AREAS:
▪ Money counterfeiting
▪ High-end security system
▪ Agriculture robotic systems
▪ Sorting Systems
▪ And more

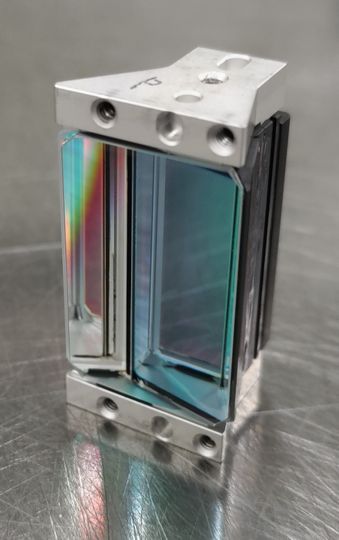

Model B & C are delivered with a multi spectral prism block, which results in a co-site image for better and more reliable information for solving your application.

PureSpectra Model  C

The powerful model C, a MIPI CSI-2 camera series, gives embedded system developers access to high performance image sensors popular in the machine vision industry.

Model B adjusted.jpg

The OEM model B is delivered including sensor board supporting your data stream. We provide you with a prism-based camera module using latest CMOS sensors with LVDS output. The sensor is an all digital system, therefore easy to maintain and designed for the professional developer. Ideal for companies addressing their market and are concerned about IP, time to market and TCO.

The pixel fusion technology provides with 1120 x 952 pixels in the visual range of the spectrum combined with a 640x 512 SWIR image sensor raw image data of each real world pixel of your image.

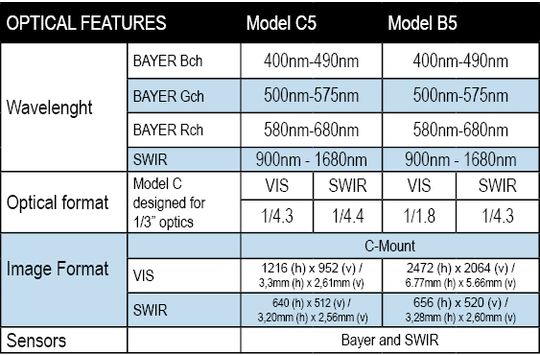

Below, optical features of model 5 can be viewed

PS Model 5 - Optical features table.JPG

On the right side, you can download the datasheet. Please inform us if you need more information
